Product introduce

LJ-Multifunction Mixed Embroidery Series

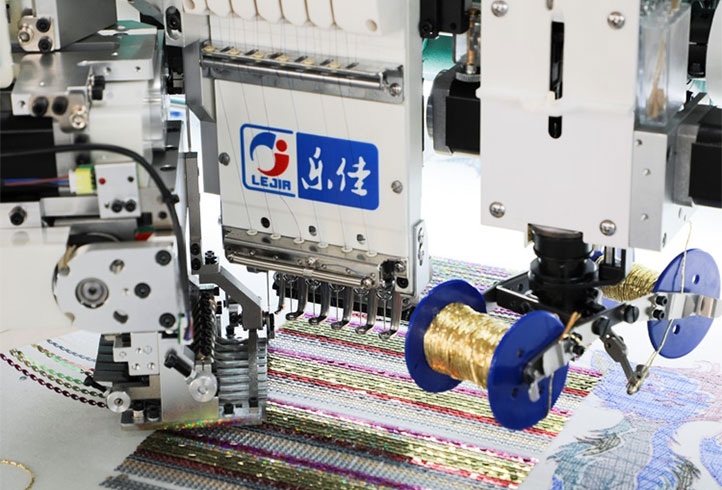

LJ-multifunction mixed series of mixed embroidery machine is a kind of special machine with high ratio of price and performance. It can reasonably and efficiently combine flat(including sequin, beads, easy coiling, lock stitches and boring), chenille/chain stitches, chain coiling, hot fix rhinestone, thermal cutting and laser cut etc as per customers, requirements to realize different mixed embroidery with high precision, highly added value and wonderful visual effects.

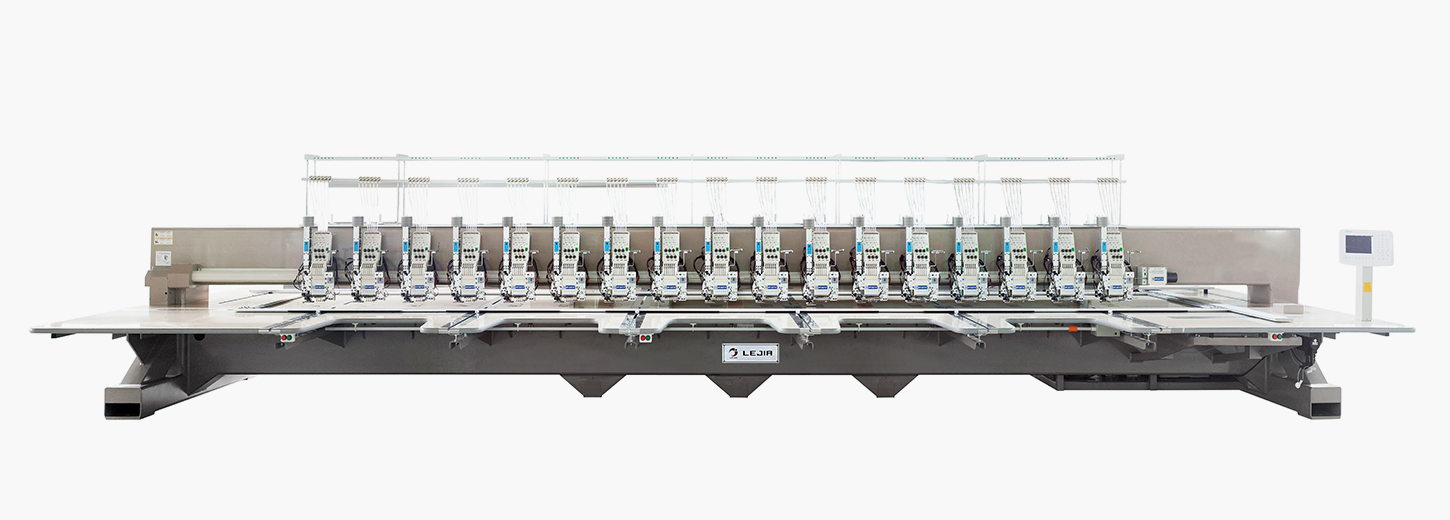

    • prd_02-2

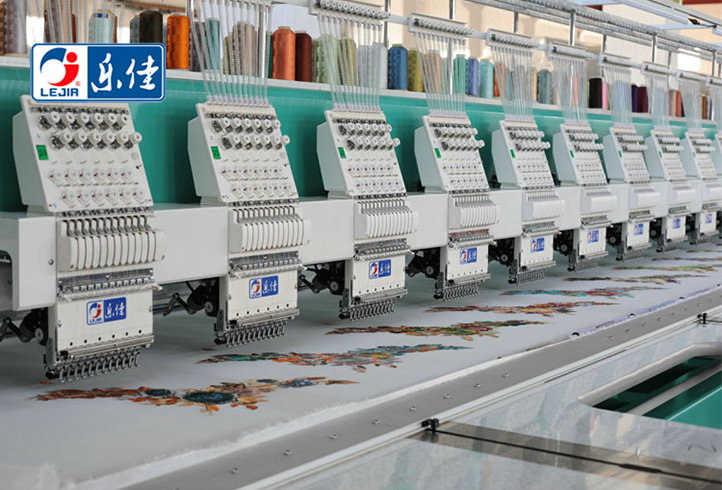

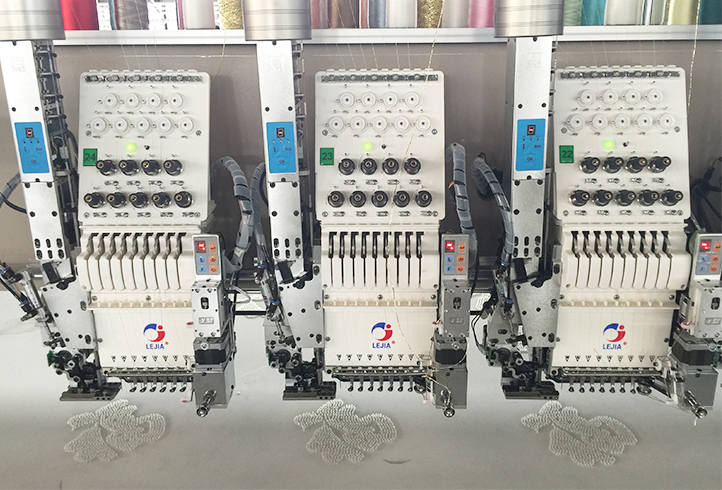

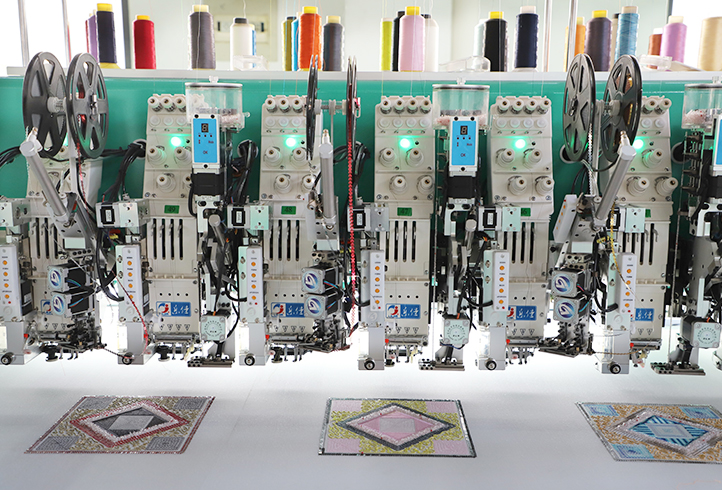

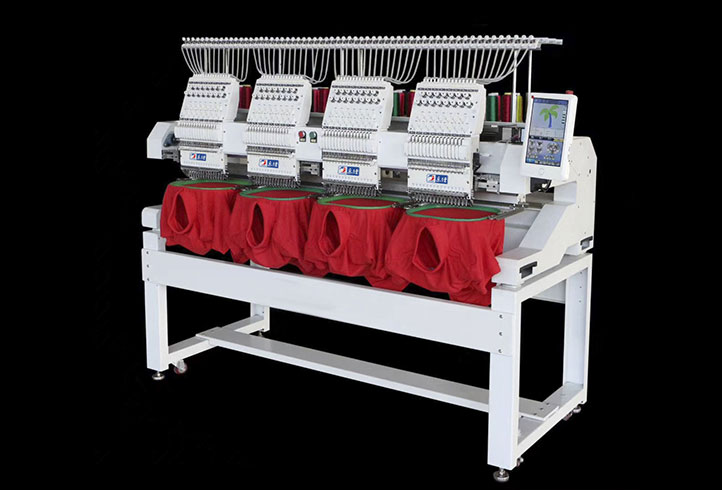

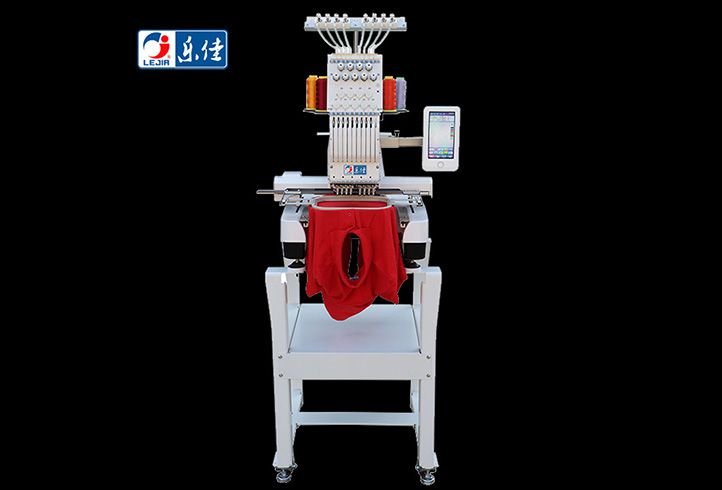

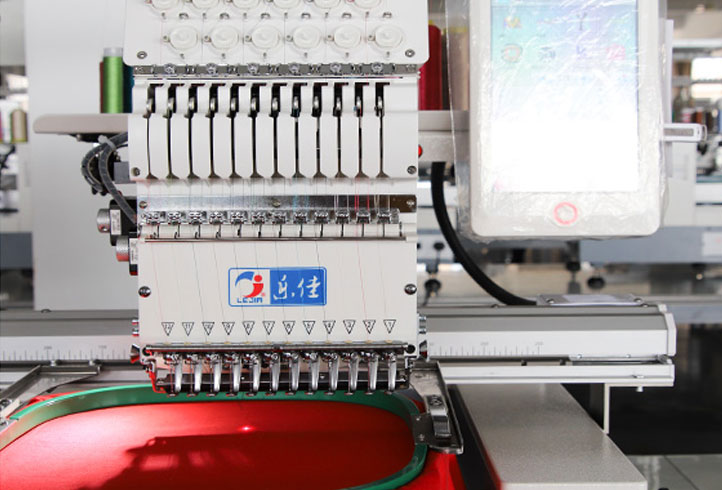

      LJ-Multifunction Mixed Embroidery Machine Series

      LJ series of Multifunction mixed embroidery machine is a kind of special machine with high ratio of price and performance.

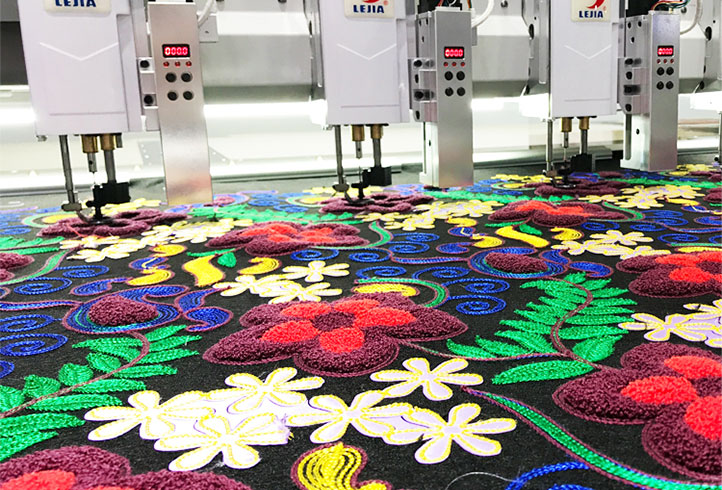

Embroidery Fabrics

LJ-Multifunction Mixed Embroidery Machine Specification:

Needle Number

3、4、6、9、12、15 needles for option

Head Number

1-228 heads for option

Head Distance

Customized

Embroidery Area

Customized

Tension Base

Intelligent thread break detect

Main Shaft Motor

2.3KW Servo Motor×1pc

Upper Thread Holding Device

Automatic keep locked thread device(For Option)

Embroidery Speed: 1200
(850 and 1200 rpm optional)

250-1200RPM

Auto Lubrication

For Option

X/Y Motor

1.5KW Servo Motor ×2pcs

Control System

Dahao Computer

X/Y Drive

1.5KW Servo Motor ×2pcs

Memory

200,0000 stitches、200pcs design

Input Voltage

Three phase 380V(50/60HZ)/Single phase 220V(50/60HZ)/

Input Mode

U DISK

Power comsumption

1.5KW-5KW

Design Format

Tajima (DST), DSB, BARUDAN, ZSK, binary system,Ternary system

Stitch Length

0.1-12.7mm

Head Structure

Double cam double lever structure, press foot and needle bar drive independently
(normal head/single cam double lever/double cam double lever optional according to needs)

Head Lock System

Solenoid jump or Motor jump

Machine Color

Green/Gray

Embroidery trimming

Step into the dynamic automatically cut the line design (For Option)

Color Change

Screw rod automatic color(For Option)

Combination Embroidery Function

Customized

Sequin Device

Single sequin/Double sequin/Twin sequin/4sequins

Sequin Specification

2mm/3mm/4mm/5mm/7mm/9mm

Easy Cording Device

Customized

Beads device

Customized

Coiling head

For Option

Combination Embroidery Function

Customized
