LJ-Flat Computerized Embroidery Series

Product introduce

LJ-Flat Computerized Embroidery Series

LJ-Flat Computerized Embroidery Series

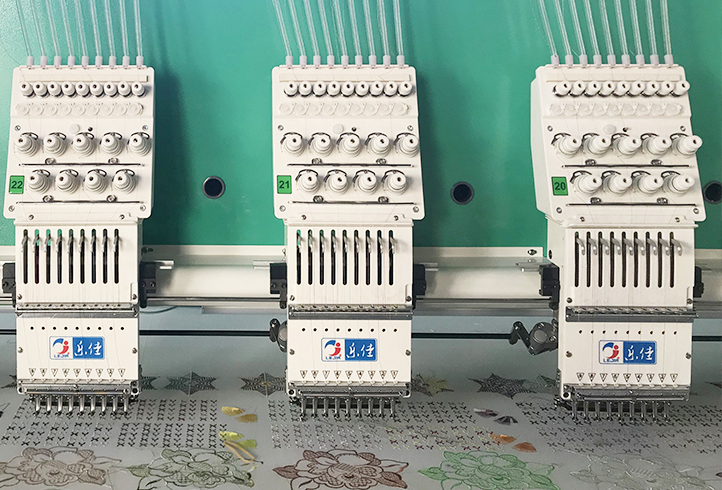

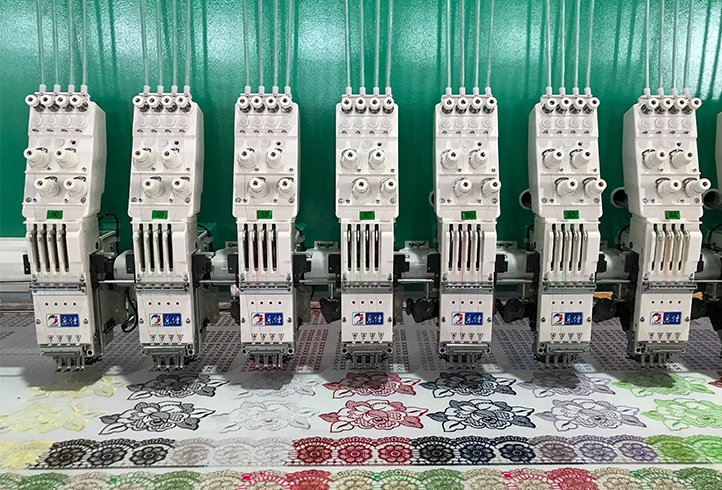

Lejia triple servo flat embroidery computerized embroidery machine, by adding sequin, chenille and other device to achieve multi-function embroidery. Perfect application in clothing design, clothing fabric, high-grade wall cloth and other products in the field. Unique machine design, effectively reduce the noise in the production process, improving the stability of embroidery, embroider in high quality and efficiency.

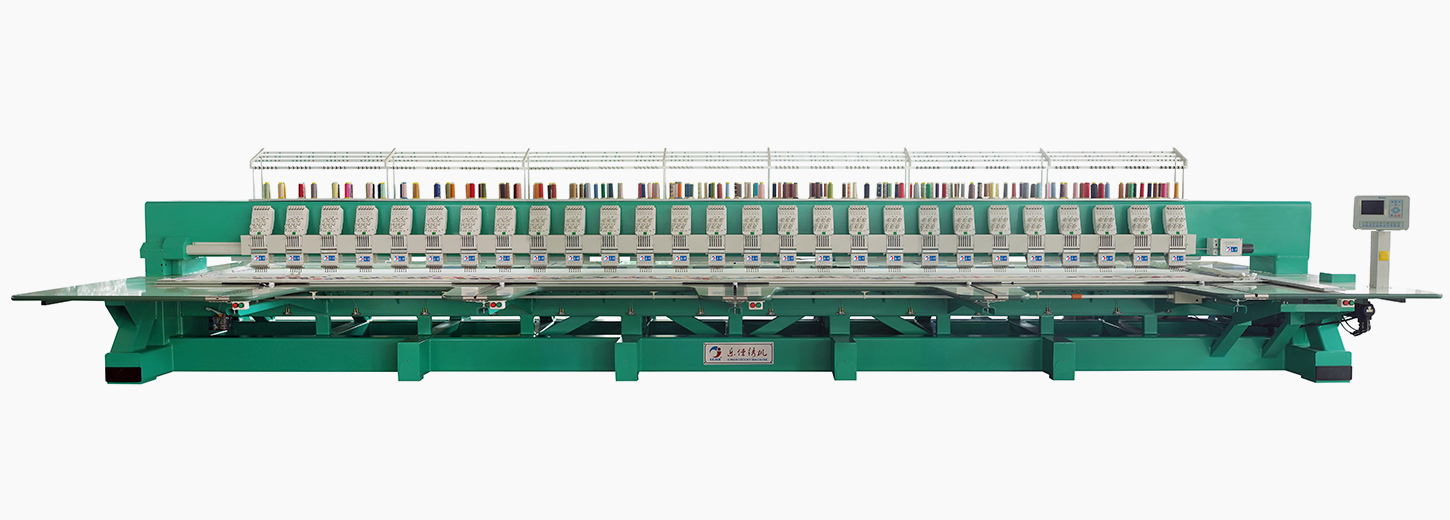

    • prd_02
      LJ-Flat computerized embroidery machine Series

      Lejia triple servo embroidery computerized embroidery machine, by adding sequin, chenille and other device to achieve multi-function embroidery....

    • xiupin001
      LJ-Flat computerized embroidery machine Series

      Lejia triple servo embroidery computer embroidery machine, by adding sequin, chenille and other device to achieve multi-funct...

    • xiupin002
      LJ-Flat Series

      Lejia triple servo embroidery computer embroidery machine, by adding sequin, chenille and other device to achieve multi-funct...

    • xiupin003
      LJ-Flat computerized embroidery machine Series

      Lejia triple servo embroidery computerized embroidery machine, by adding sequin, chenille and other device to achieve multi-funct...

Embroidery Fabrics


  • xiupin_01

  • xiupin_02

  • xiupin_03

  • xiupin_04

  • xiupin_07

  • xiupin_06

  • xiupin_05

Product Specification:

Needle Number

3、4、6、9、12、15 needles for option

Head Number

1-228 heads for option

Head Distance

Customized

Embroidery Area

Customized

Tension Base

Intelligent thread break detect

Main Shaft Motor

2.3KW Servo Motor×1pc

Upper Thread Holding Device

Automatic keep locked thread device(For Option)

Embroidery Speed: 1200
(850 and 1200 rpm optional)

250-1200RPM

Auto Lubrication

For Option

X/Y Motor

1.5KW Servo Motor ×2pcs

Control System

Dahao Computer

X/Y Drive

1.5KW Servo Motor ×2pcs

Memory

200,0000 stitches、200pcs design

Input Voltage

Three phase 380V(50/60HZ)/Single phase 220V(50/60HZ)/

Input Mode

U DISK

Power comsumption

1.5KW-5KW

Design Format

Tajima (DST), DSB, BARUDAN, ZSK, binary system,Ternary system

Stitch Length

0.1-12.7mm

Head Structure

Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs)

Head Lock System

Solenoid jump or Motor jump

Machine Color

Green/Gray

Embroidery trimming

Step into the dynamic automatically cut the line design (For Option)

Color Change

Screw rod automatic color(For Option)

Combination Embroidery Function

Customized
