Product introduce

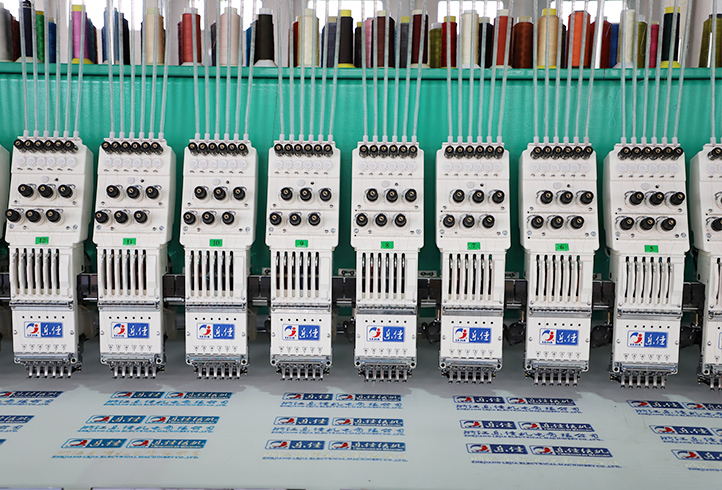

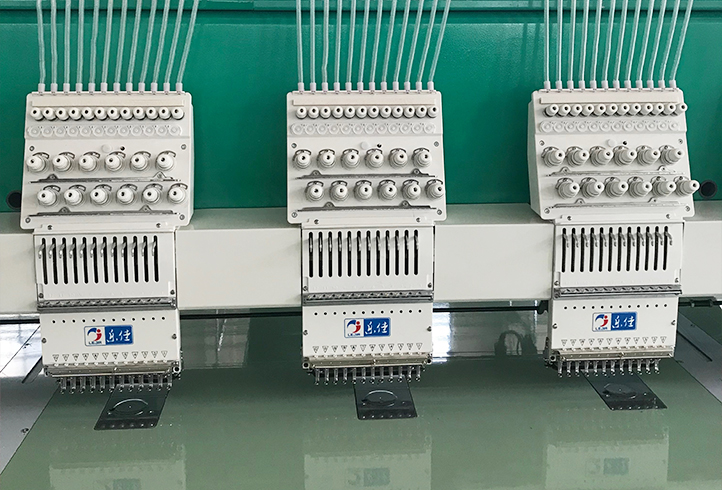

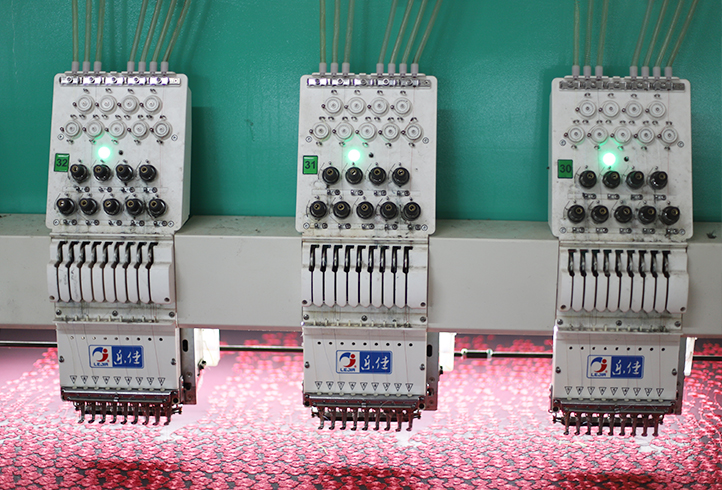

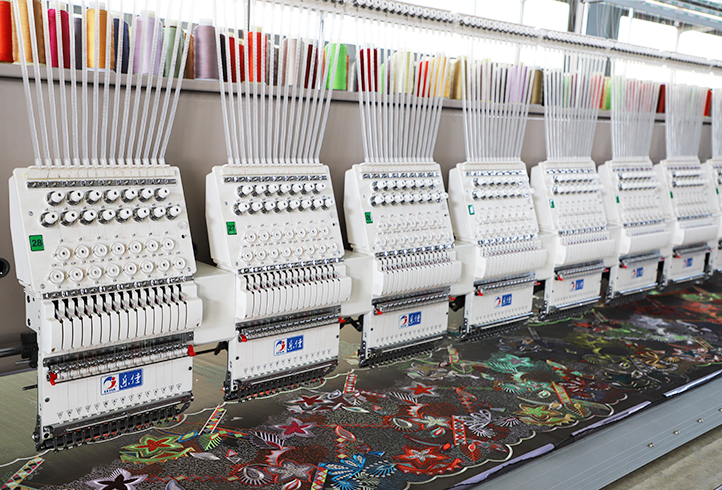

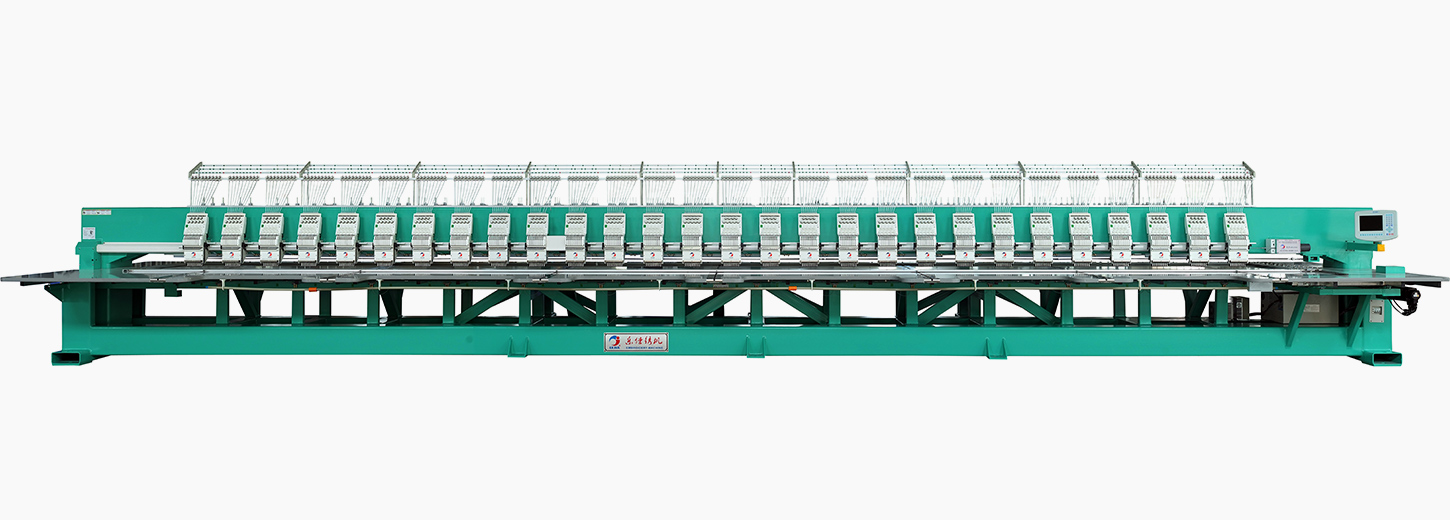

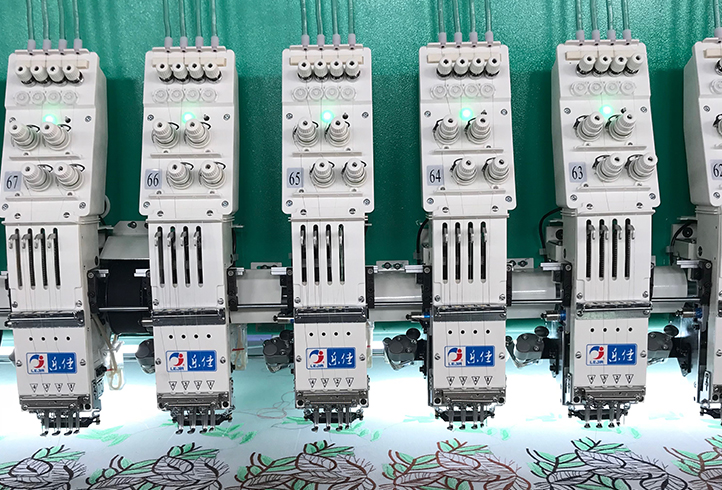

LJ-High Speed Embroidery Machine Series

High speed embroidery machines are developed with advanced controlling system, reliable machine body and reasonable driving structure with high speed and low noise. It reaches max speed of 1200 RPM and it’s compatible with single/double side sequin device, single/double side overlapped sequin device, easy taping device, easy chenille device and beads device that makes the perfect combination with speed and embroidery quality.



    • prd_01
      LJ-High Speed Embroidery Machine Series

      Lejia High speed embroidery machines wholesalers are developed with advanced controlling system, reliable machine body and reasonable driving structure with high speed and low noise.

    • prd_01-2
      LJ-High Speed Embroidery Machine Series

      Lejia High speed embroidery machines company are developed with advanced controlling system, reliable machine body and reasonable driving structure with high speed and low noise.

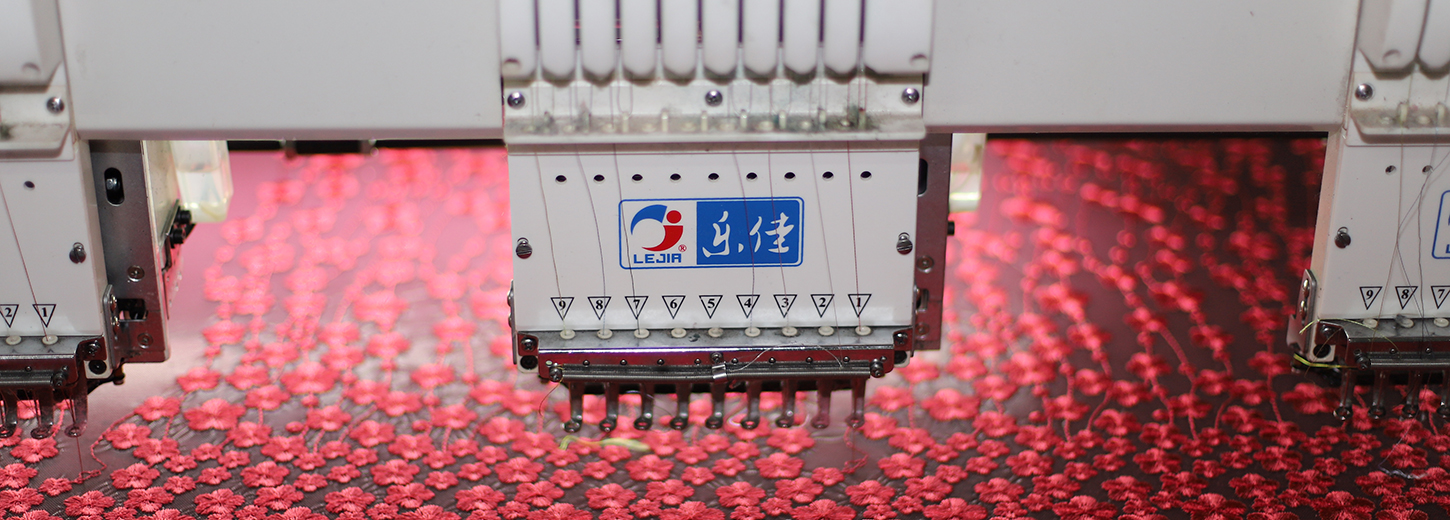

    • prd_01-1
      LJ-High Speed Embroidery Machine Series

      find cheap Lejia High speed embroidery machines price,Lejia High speed embroidery machines are developed with advanced controlling system, reliable machine body and reasonable driving structure with high speed and low noise.

Embroidery Fabrics

High Speed Embroidery Machine Specification:

Needle Number

3、4、6、9、12、15 needles for option

Head Number

1-228 heads for option

Head Distance

Customized

Embroidery Area

Customized

Tension Base

Intelligent thread break detect

Main Shaft Motor

2.3KW Servo Motor×1pc

Upper Thread Holding Device

Automatic keep locked thread device(For Option)

Embroidery Speed: 1200
(850 and 1200 rpm optional)

250-1200RPM

Auto Lubrication

For Option

X/Y Motor

1.5KW Servo Motor ×2pcs

Control System

Dahao Computer

X/Y Drive

1.5KW Servo Motor ×2pcs

Memory

200,0000 stitches、200pcs design

Input Voltage

Three phase 380V(50/60HZ)/Single phase 220V(50/60HZ)/

Input Mode

U DISK

Power comsumption

1.5KW-5KW

Design Format

Tajima (DST), DSB, BARUDAN, ZSK, binary system,Ternary system

Stitch Length

0.1-12.7mm

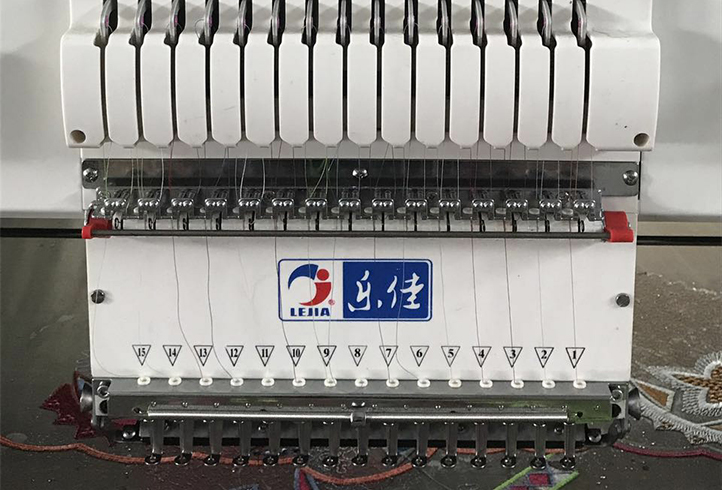

Head Structure

Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs)

Head Lock System

Solenoid jump or Motor jump

Machine Color

Green/Gray

Embroidery trimming

Step into the dynamic automatically cut the line design (For Option)

Color Change

Screw rod automatic color(For Option)

Combination Embroidery Function

Customized
