Product introduce
LJ-928 Sequin Embroidery Machine High speed embroidery machine computerized embroidery machine
Sequin/Beads Embroidery Machine Series uses lock stitches embroidery without any falling off of thread. And meanwhile, it has the characteristic of chain stitch looping embroidery with strong sense of three-D. Compared with the high cost for chain stitch looping, lock stitch looping has much lower cost, and it also offers various kinds of beautiful embroidery.
-
LJ-Sequin/Beads Embroidery MachineSeries
Lejia Sequin/Beads Embroidery Machine Manufacturers and Sequin/Beads Embroidery Machine Company,our product uses lock stitches embroidery without any falling off of thread. And meanwhile.
Sequin/Beads Embroidery Machine Specification:
|
Needle Number |
3、4、6、9、12、15 needles for option |
Head Number |
1-228 heads for option |
|
Head Distance |
Customized |
Embroidery Area |
Customized |
|
Tension Base |
Intelligent thread break detect |
Main Shaft Motor |
2.3KW Servo Motor×1pc |
|
Upper Thread Holding Device |
Automatic keep locked thread device(For Option) |
Embroidery Speed: 1200 |
250-1200RPM |
|
Auto Lubrication |
For Option |
X/Y Motor |
1.5KW Servo Motor ×2pcs |
|
Control System |
Dahao Computer |
X/Y Drive |
1.5KW Servo Motor ×2pcs |
|
Memory |
200,0000 stitches、200pcs design |
Input Voltage |
Three phase 380V(50/60HZ)/Single phase 220V(50/60HZ)/ |
|
Input Mode |
U DISK |
Power comsumption |
1.5KW-5KW |
|
Design Format |
Tajima (DST), DSB, BARUDAN, ZSK, binary system,Ternary system |
Stitch Length |
0.1-12.7mm |
|
Head Structure |
Double cam double lever structure, press foot and needle bar drive independently |
Head Lock System |
Solenoid jump or Motor jump |
|
Machine Color |
Green/Gray |
Embroidery trimming |
Step into the dynamic automatically cut the line design (For Option) |
|
Color Change |
Screw rod automatic color(For Option) |
Combination Embroidery Function |
Customized |
|

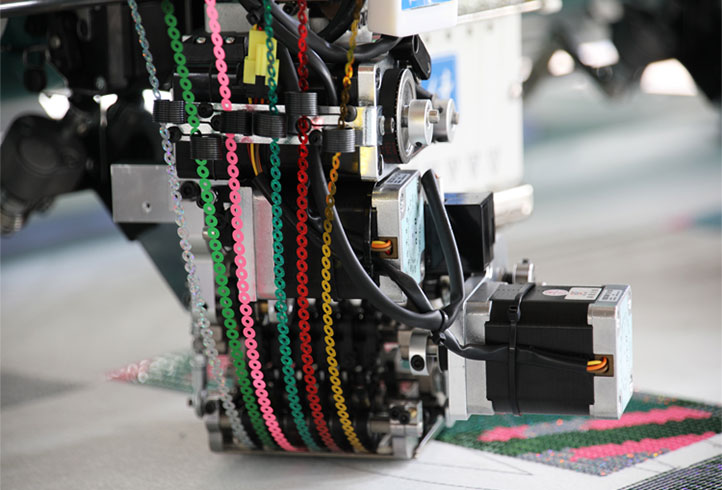

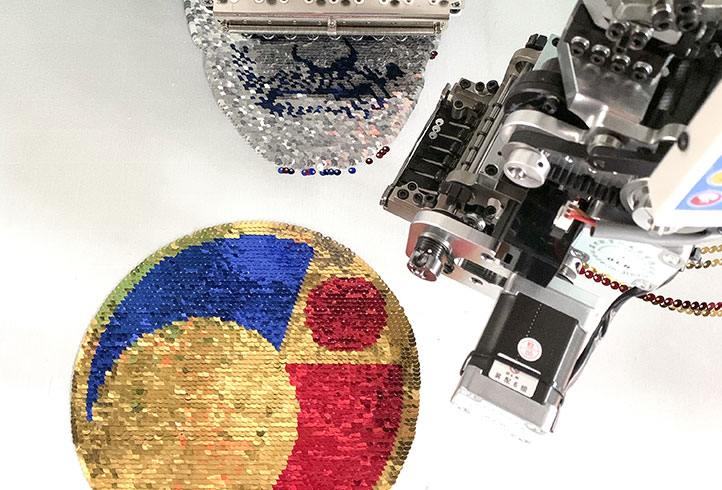

Sequin Device |
Single sequin/Double sequin/Twin sequin/4sequins |
Sequin Specification |
2mm/3mm/4mm/5mm/7mm/9mm |
|
Easy Cording Device |
Customized |
Beads device |
Customized |
