Product introduce

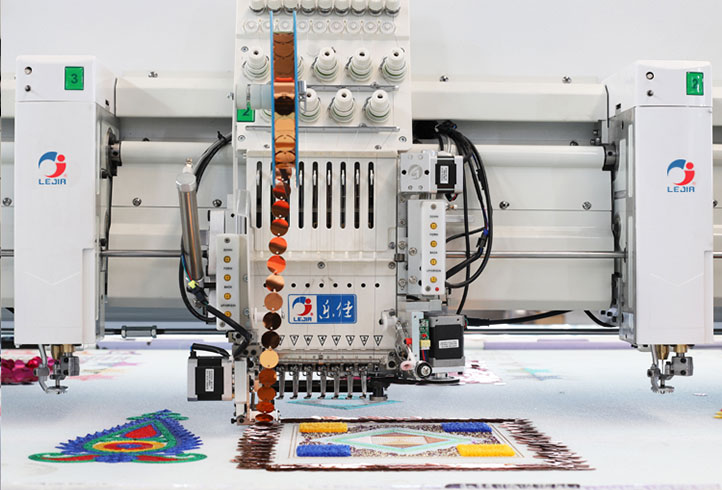

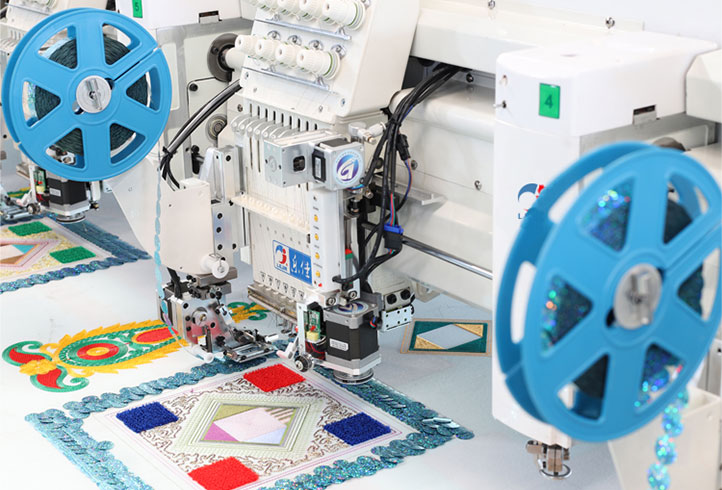

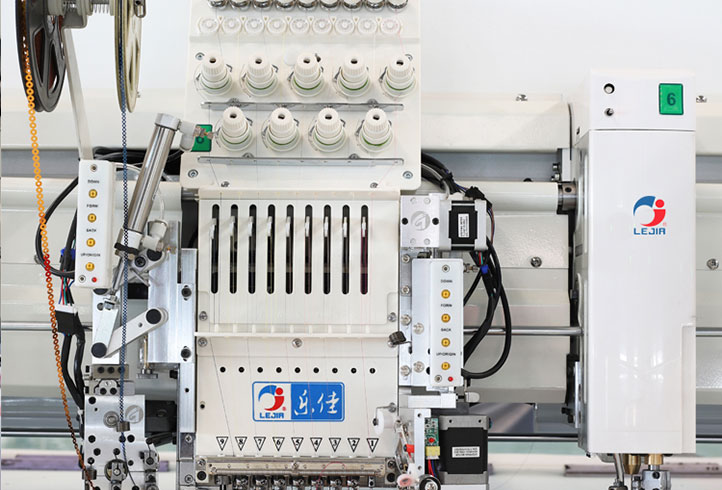

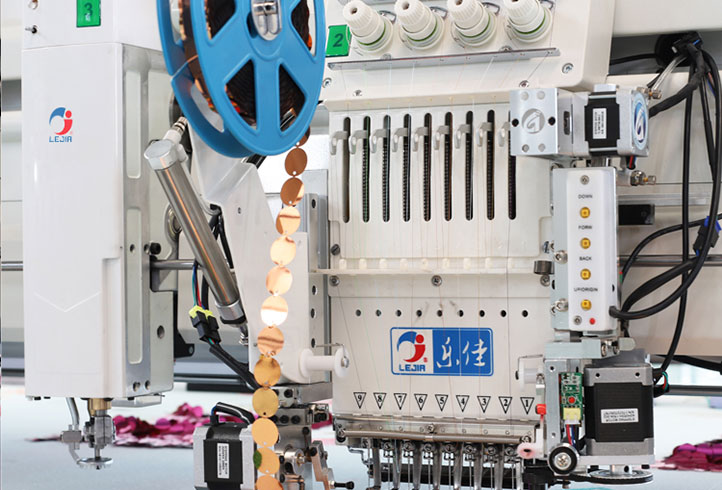

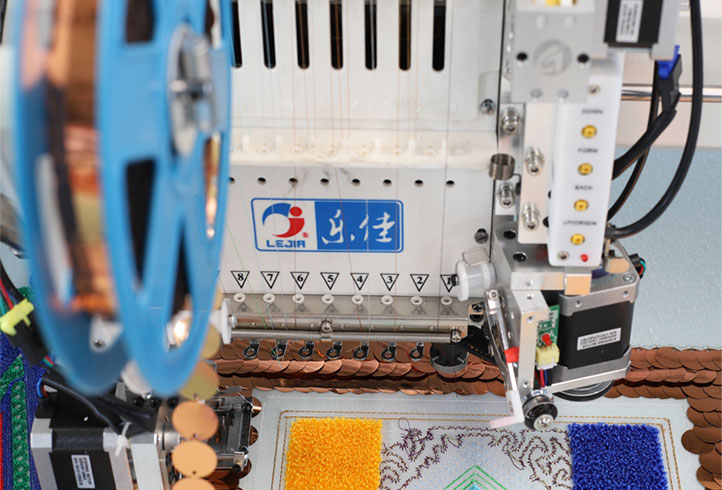

LJ-910+610 Multi-function embroidery machine chenille embroidery machine embroidery machine with sequin device
LJ-multifunction mixed series of mixed embroidery machine is a kind of special machine with high ratio of price and performance. It can reasonably and efficiently combine flat(including sequin, beads, easy coiling, lock stitches and boring), chenille/chain stitches, chain coiling, hot fix rhinestone, thermal cutting and laser cut etc as per customers, requirements to realize different mixed embroidery with high precision, highly added value and wonderful visual effects.
-
LJ-Multifunction Mixed Embroidery Machine Series
LJ series of Multifunction mixed embroidery machine is a kind of special machine with high ratio of price and performance.
LJ-Multifunction Mixed Embroidery Machine Specification:
|
Needle Number |
3、4、6、9、12、15 needles for option |
Head Number |
1-228 heads for option |
|
Head Distance |
Customized |
Embroidery Area |
Customized |
|
Tension Base |
Intelligent thread break detect |
Main Shaft Motor |
2.3KW Servo Motor×1pc |
|
Upper Thread Holding Device |
Automatic keep locked thread device(For Option) |
Embroidery Speed: 1200 |
250-1200RPM |
|
Auto Lubrication |
For Option |
X/Y Motor |
1.5KW Servo Motor ×2pcs |
|
Control System |
Dahao Computer |
X/Y Drive |
1.5KW Servo Motor ×2pcs |
|
Memory |
200,0000 stitches、200pcs design |
Input Voltage |
Three phase 380V(50/60HZ)/Single phase 220V(50/60HZ)/ |
|
Input Mode |
U DISK |
Power comsumption |
1.5KW-5KW |
|
Design Format |
Tajima (DST), DSB, BARUDAN, ZSK, binary system,Ternary system |
Stitch Length |
0.1-12.7mm |
|
Head Structure |
Double cam double lever structure, press foot and needle bar drive independently |
Head Lock System |
Solenoid jump or Motor jump |
|
Machine Color |
Green/Gray |
Embroidery trimming |
Step into the dynamic automatically cut the line design (For Option) |
|
Color Change |
Screw rod automatic color(For Option) |
Combination Embroidery Function |
Customized |
|
Sequin Device |
Single sequin/Double sequin/Twin sequin/4sequins |
Sequin Specification |
2mm/3mm/4mm/5mm/7mm/9mm |
|
Easy Cording Device |
Customized |
Beads device |
Customized |
|
Coiling head |
For Option |
Combination Embroidery Function |
Customized |
