LJ-618+18 Multi-function embroidery machine coiling/taping embroidery machine embroidery machine with sequin device

LJ-multifunction mixed series of mixed embroidery machine is a kind of special machine with high ratio of price and performance. It can reasonably and efficiently combine flat(including sequin, beads, easy coiling, lock stitches and boring), chenille/chain stitches, chain coiling, hot fix rhinestone, thermal cutting and laser cut etc as per customers, requirements to realize different mixed embroidery with high precision, highly added value and wonderful visual effects.

Product Details Inquiry Us

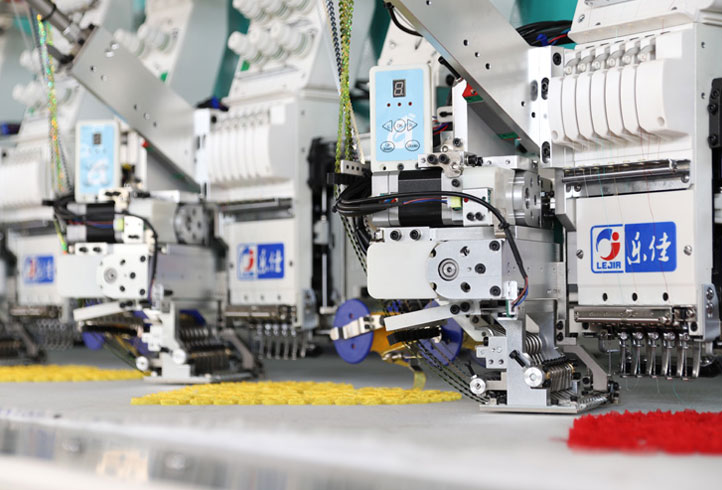

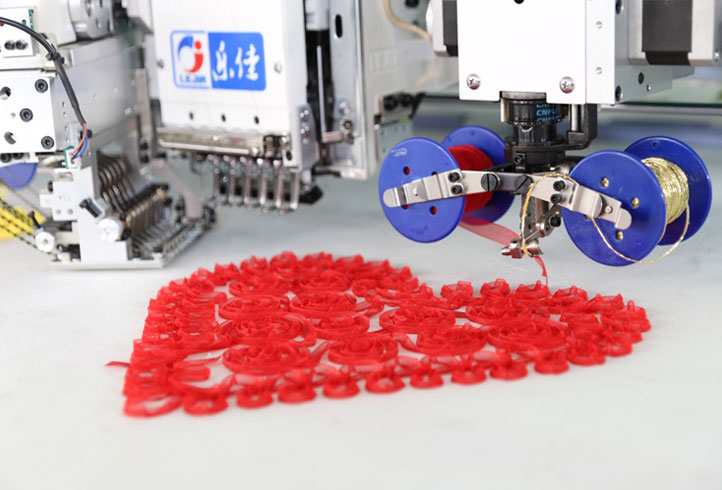

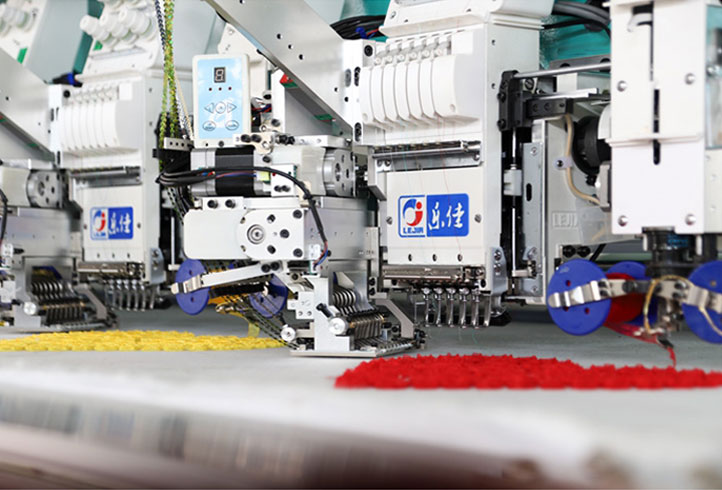

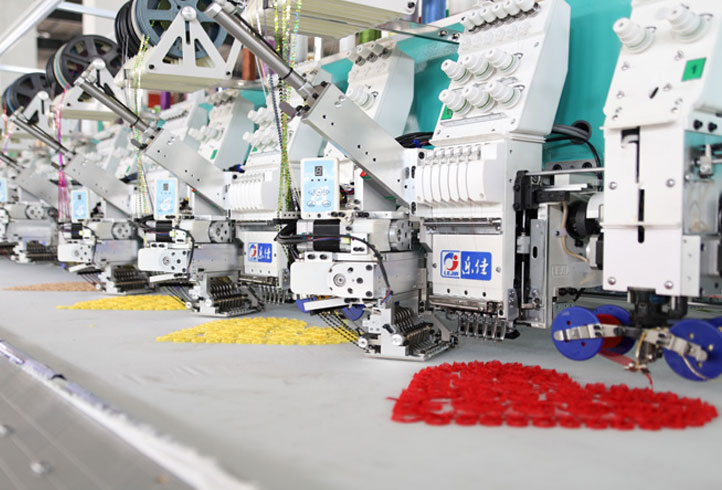

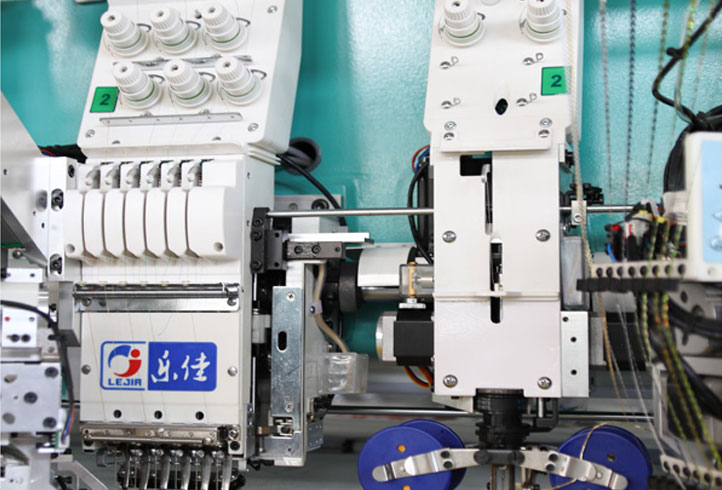

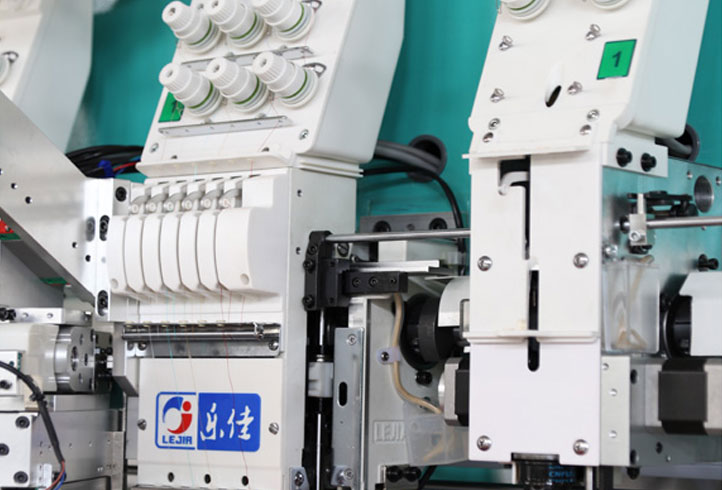

Product Shows

LJ-Multifunction Mixed Embroidery Machine Series

LJ series of Multifunction mixed embroidery machine is a kind of special machine with high ratio of price and performance.

Embroidery Fabrics

Product Details

LJ-Multifunction Mixed Embroidery Machine Specification:

Needle Number	3、4、6、9、12、15 needles for option	Head Number	1-228 heads for option
Head Distance	Customized	Embroidery Area	Customized
Tension Base	Intelligent thread break detect	Main Shaft Motor	2.3KW Servo Motor×1pc
Upper Thread Holding Device	Automatic keep locked thread device(For Option)	Embroidery Speed: 1200 (850 and 1200 rpm optional)	250-1200RPM
Auto Lubrication	For Option	X/Y Motor	1.5KW Servo Motor ×2pcs
Control System	Dahao Computer	X/Y Drive	1.5KW Servo Motor ×2pcs
Memory	200,0000 stitches、200pcs design	Input Voltage	Three phase 380V(50/60HZ)/Single phase 220V(50/60HZ)/
Input Mode	U DISK	Power comsumption	1.5KW-5KW
Design Format	Tajima (DST), DSB, BARUDAN, ZSK, binary system,Ternary system	Stitch Length	0.1-12.7mm
Head Structure	Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs)	Head Lock System	Solenoid jump or Motor jump
Machine Color	Green/Gray	Embroidery trimming	Step into the dynamic automatically cut the line design (For Option)
Color Change	Screw rod automatic color(For Option)	Combination Embroidery Function	Customized
Sequin Device	Single sequin/Double sequin/Twin sequin/4sequins	Sequin Specification	2mm/3mm/4mm/5mm/7mm/9mm
Easy Cording Device	Customized	Beads device	Customized
Coiling head	For Option	Combination Embroidery Function	Customized
