Product introduce
LJ-490 Computer Embroidery Machine High speed embroidery machine computerized embroidery machine
Lejia triple servo flat embroidery computerized embroidery machine, by adding sequin, chenille and other device to achieve multi-function embroidery. Perfect application in clothing design, clothing fabric, high-grade wall cloth and other products in the field. Unique machine design, effectively reduce the noise in the production process, improving the stability of embroidery, embroider in high quality and efficiency.
-
LJ-Flat computerized embroidery machine Series
Lejia triple servo embroidery computerized embroidery machine, by adding sequin, chenille and other device to achieve multi-function embroidery....
-
LJ-Flat computerized embroidery machine Series
Lejia triple servo embroidery computer embroidery machine, by adding sequin, chenille and other device to achieve multi-funct...
-
LJ-Flat Series
Lejia triple servo embroidery computer embroidery machine, by adding sequin, chenille and other device to achieve multi-funct...
-
LJ-Flat computerized embroidery machine Series
Lejia triple servo embroidery computerized embroidery machine, by adding sequin, chenille and other device to achieve multi-funct...
Product Specification:
|

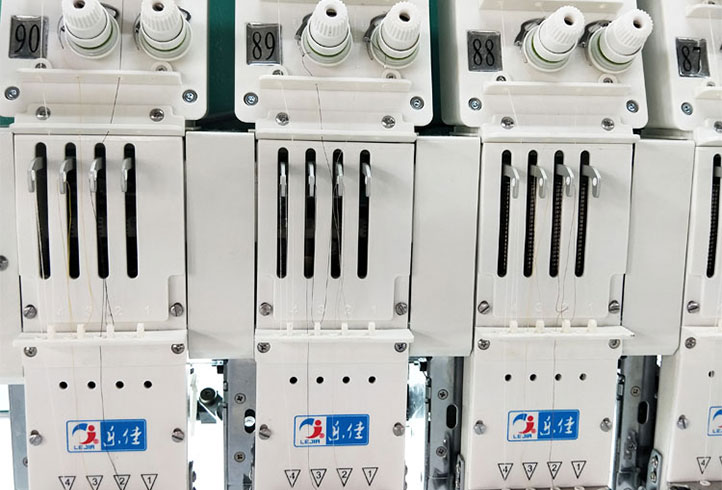

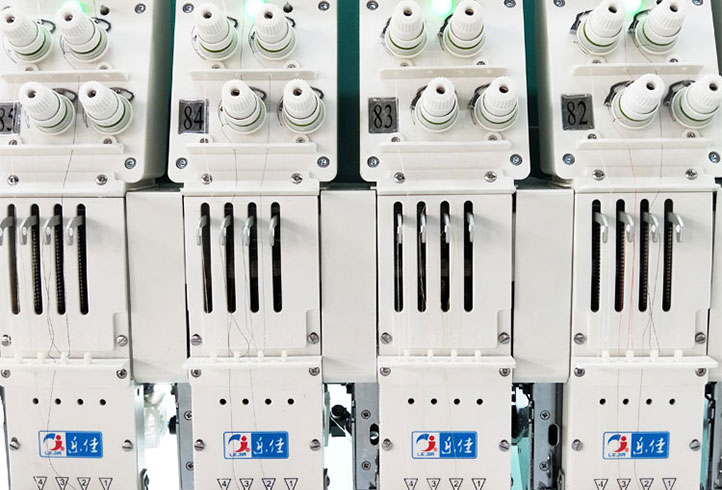

Needle Number |
3、4、6、9、12、15 needles for option |

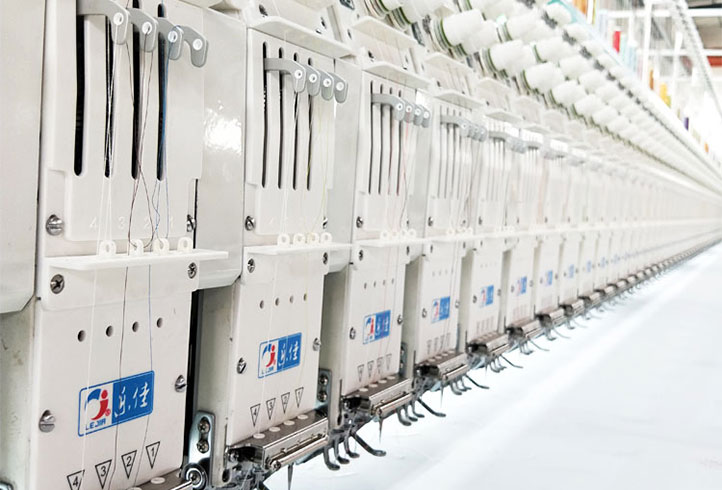

Head Number |
1-228 heads for option |
|
Head Distance |
Customized |
Embroidery Area |
Customized |
|
Tension Base |
Intelligent thread break detect |
Main Shaft Motor |
2.3KW Servo Motor×1pc |
|
Upper Thread Holding Device |
Automatic keep locked thread device(For Option) |
Embroidery Speed: 1200 |
250-1200RPM |
|
Auto Lubrication |
For Option |
X/Y Motor |
1.5KW Servo Motor ×2pcs |
|

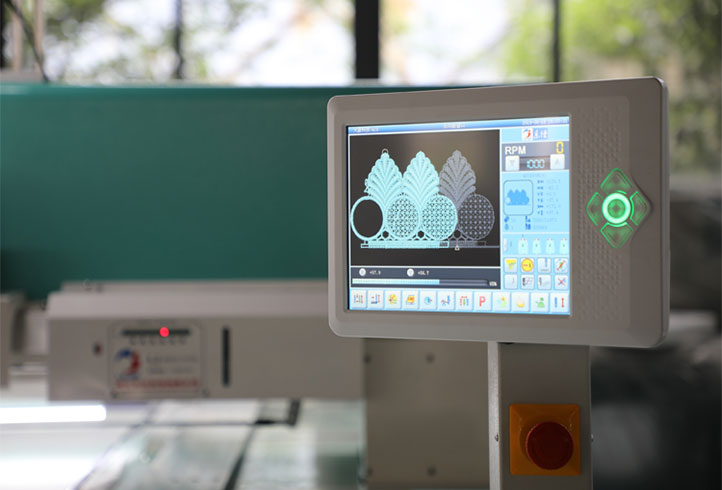

Control System |
Dahao Computer |
X/Y Drive |
1.5KW Servo Motor ×2pcs |
|
Memory |
200,0000 stitches、200pcs design |
Input Voltage |
Three phase 380V(50/60HZ)/Single phase 220V(50/60HZ)/ |
|
Input Mode |
U DISK |
Power comsumption |
1.5KW-5KW |
|
Design Format |
Tajima (DST), DSB, BARUDAN, ZSK, binary system,Ternary system |
Stitch Length |
0.1-12.7mm |
|

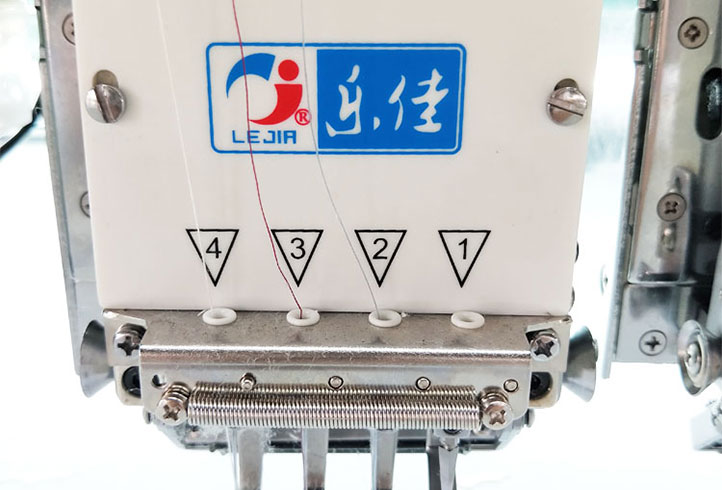

Head Structure |
Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs) |
Head Lock System |
Solenoid jump or Motor jump |
|
Machine Color |
Green/Gray |
Embroidery trimming |
Step into the dynamic automatically cut the line design (For Option) |
|
Color Change |
Screw rod automatic color(For Option) |
Combination Embroidery Function |
Customized |
-
