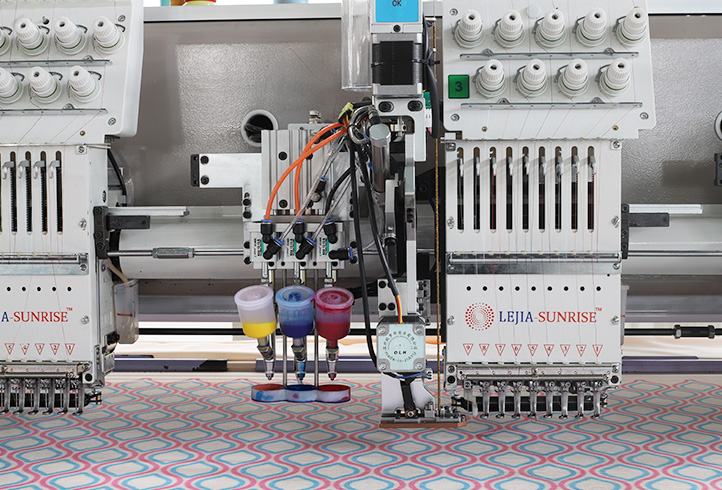

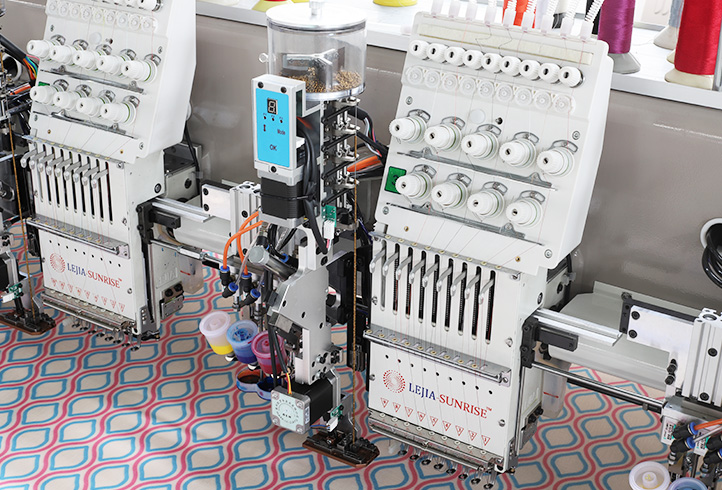

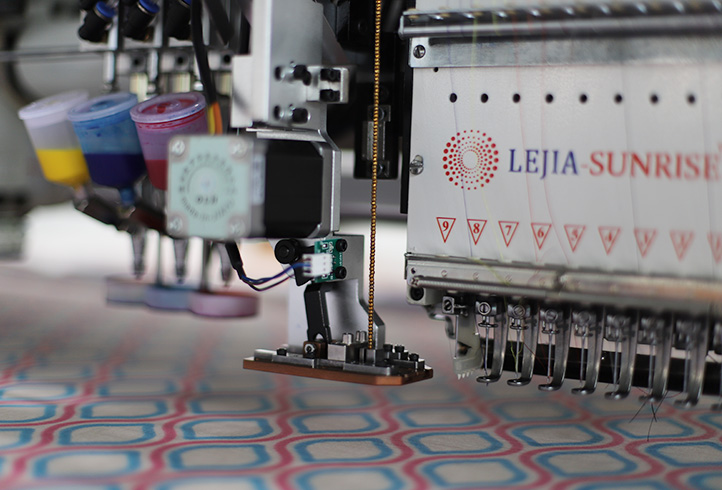

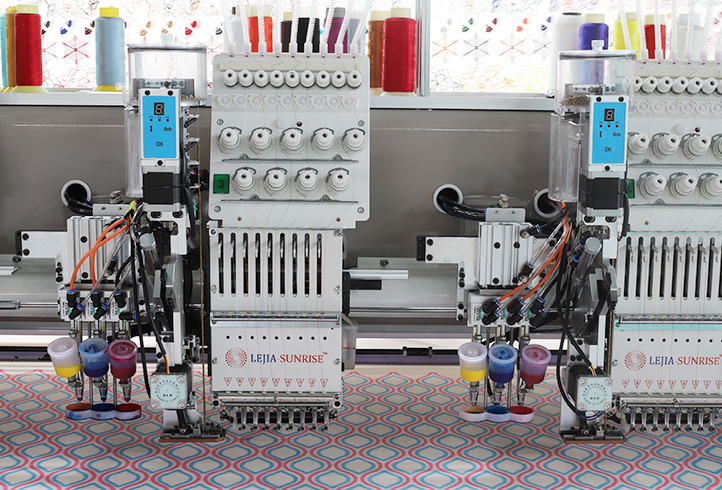

LJ-Spray Printing Embroidery Series

Needle Number

3、4、6、9、12、15 needles for option

Head Number

1-228 heads for option

Head Distance

Customized

Embroidery Area

Customized

Tension Base

Intelligent thread break detect

Main Shaft Motor

2.3KW Servo Motor×1pc

Upper Thread Holding Device

Automatic keep locked thread device(For Option)

Embroidery Speed: 1200
(850 and 1200 rpm optional)

250-1200RPM

Auto Lubrication

For Option

X/Y Motor

1.5KW Servo Motor ×2pcs

Control System

Dahao Computer

X/Y Drive

1.5KW Servo Motor ×2pcs

Memory

200,0000 stitches、200pcs design

Input Voltage

Three phase 380V(50/60HZ)/Single phase 220V(50/60HZ)/

Input Mode

U DISK

Power comsumption

1.5KW-5KW

Design Format

Tajima (DST), DSB, BARUDAN, ZSK, binary system,Ternary system

Stitch Length

0.1-12.7mm

Head Structure

Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs)

Head Lock System

Solenoid jump or Motor jump

Machine Color

Green/Gray

Embroidery trimming

Step into the dynamic automatically cut the line design (For Option)

Spray Printing Color No.

3~9 color

Ink

All Types ink avaiable
